Ramps

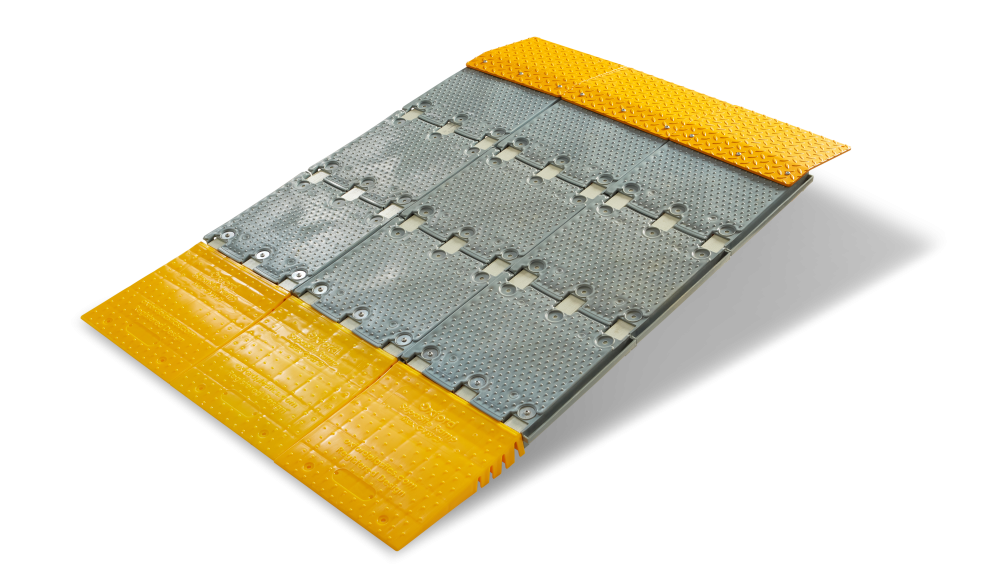

SupaSite Ramp
The SupaSite Ramp is a versatile heavy-duty ramp for up to 3-tonne machines and vehicles, for use from 100mm to 300mm. Replacing bespoke timber ramps and heavy steel alternatives.
Robust Construction Site Ramp
- Replaces bespoke handmade plywood ramps

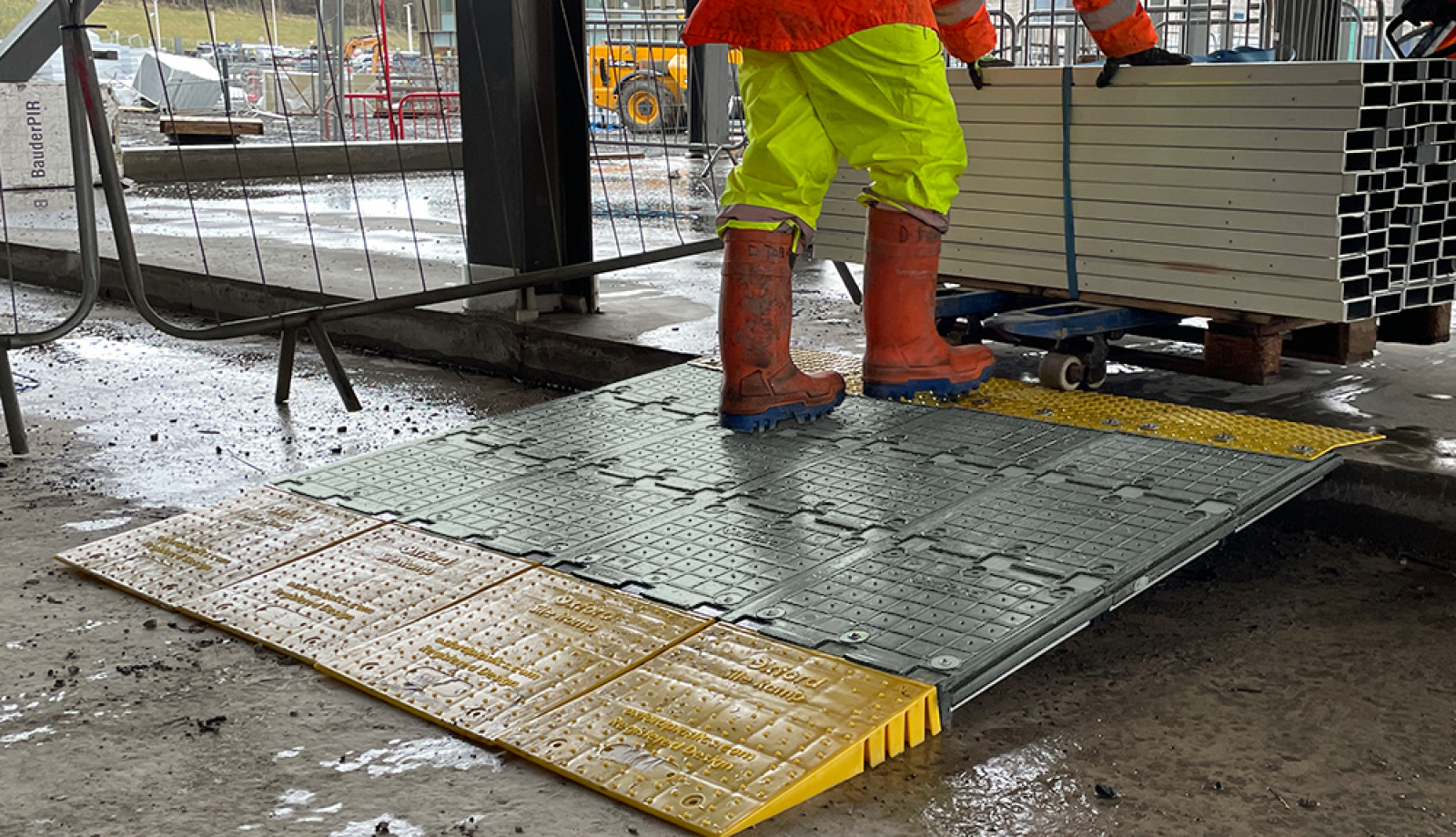

- Gives ramp access for pallet trucks & MEWPs (Mobile work platforms)
- Reusable, repairable & recyclable
Features & Benefits
- 3T working load
- Min. 2:1 safety factor

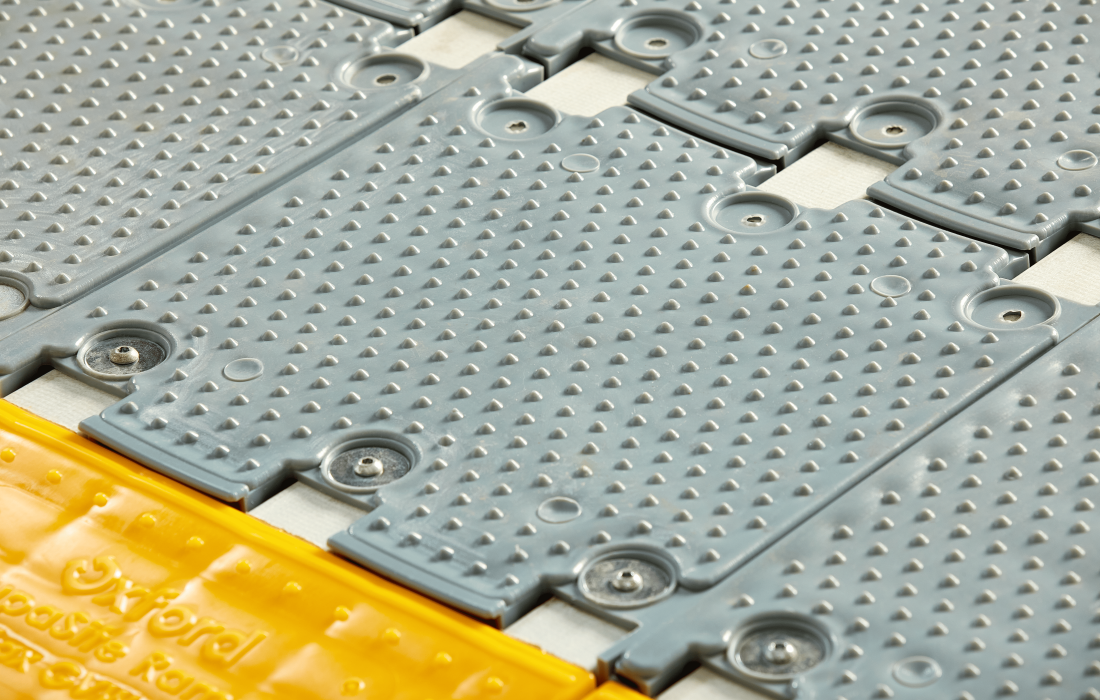

- Non-slip top surface.

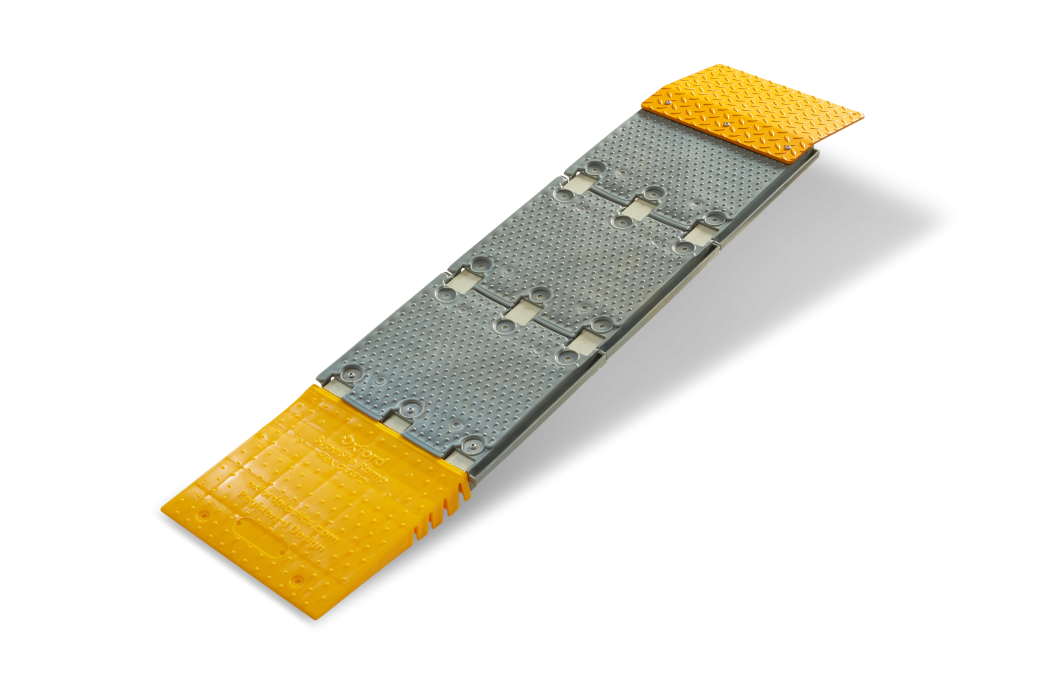

- Modular, 400mm wide sections
- One person installation, quick to deploy in sections that link easily
Downloads
Our secure construction ramps are essential for maintaining accessibility on construction sites, commonly used to provide access for pallet trucks & MEWPs, replacing bespoke handmade plywood ramps. Find out more about our construction ramps from our helpful downloads, or learn about our ramps range today.
-
ProductCategoryType
-
pdf
SupaSite RampRampsProduct Sheet -
zip
SupaSite RampRampsWebsite Asset Pack
Product Specifications
SupaSite Ramp
- Product ref.
- 5917
- Tool code
- O916
- Height (mm)
- 79mm
- Width (mm)
- 417mm
- Length (mm)
- 1850mm
- Weight (kg)
- 19kg
- Quantity per pallet
- 30
- Colour
- Grey & Yellow
