LowPro Road Plates & Trench Covers

LowPro® 12/8 Trench Cover System

Lightweight, composite trench cover for pedestrians and 1.6T vehicles over a 700mm excavation. HAUC compliant Footway Board. Alternative to steel plates and plywood boards, not for use in the roadway.

LowPro® 12/8 Trench Cover System

System Components

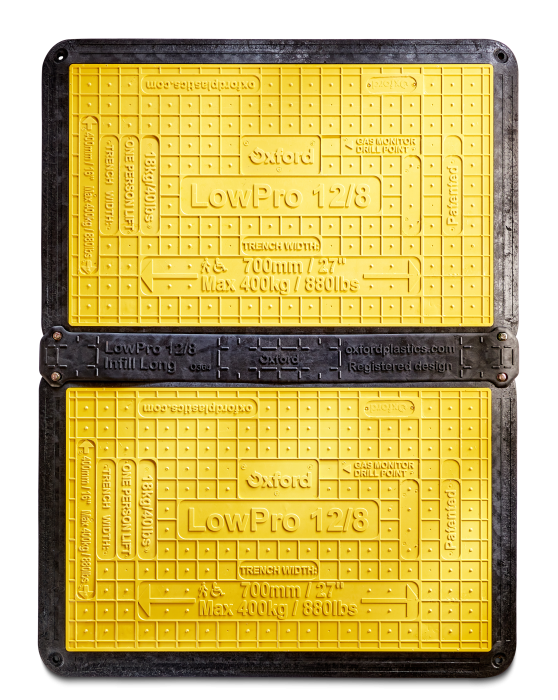

The LowPro 12/8 is a modular system of linking pedestrian trench covers, comprising the trench cover and 2 sizes of infill strips.

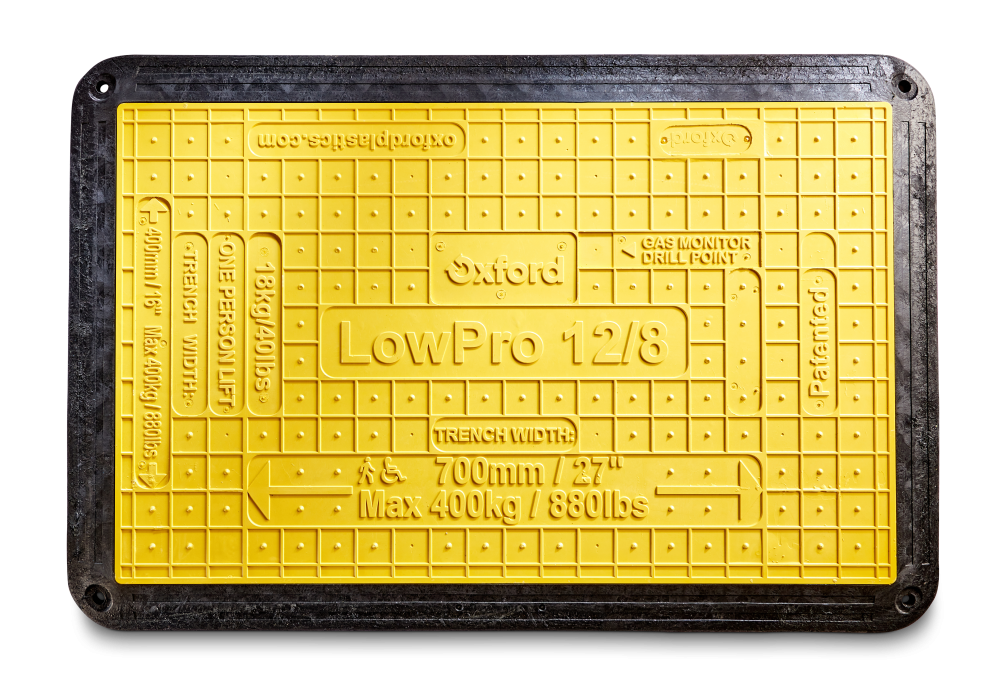

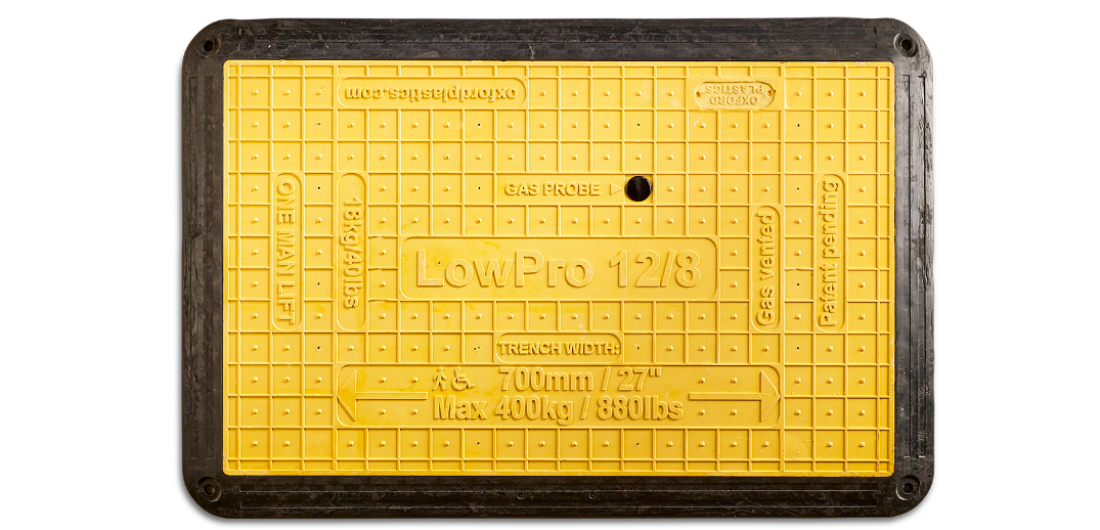

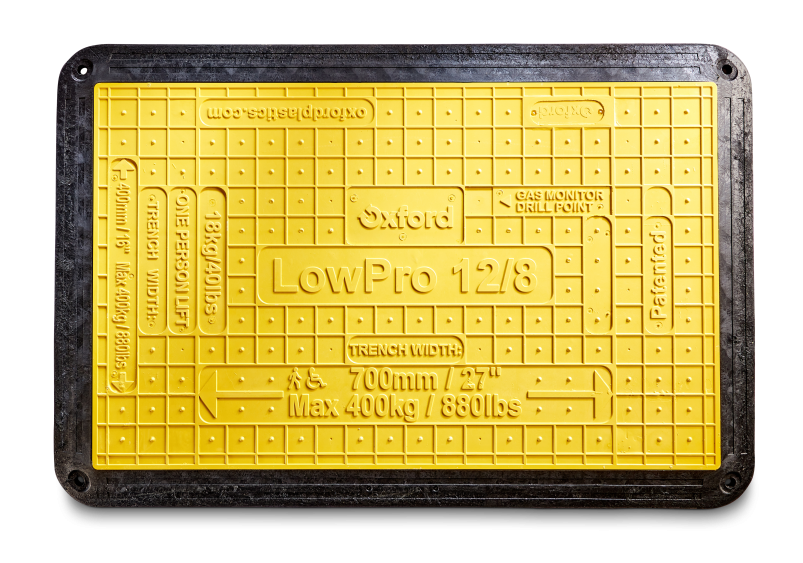

LowPro 12/8 Trench Cover
LowPro 12/8 Trench Cover

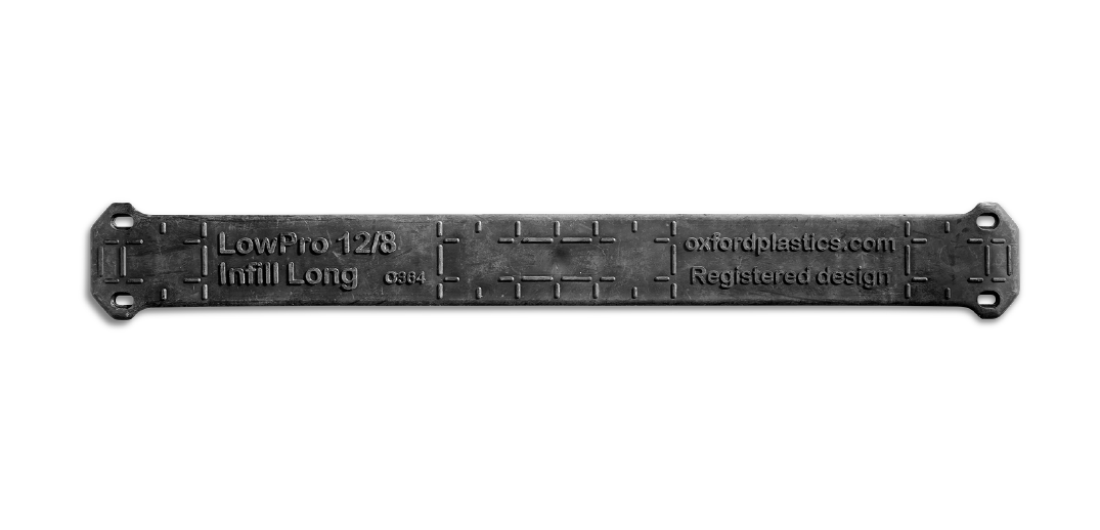

LowPro 12/8 Infill Strip Long
LowPro 12/8 Infill Strip Long

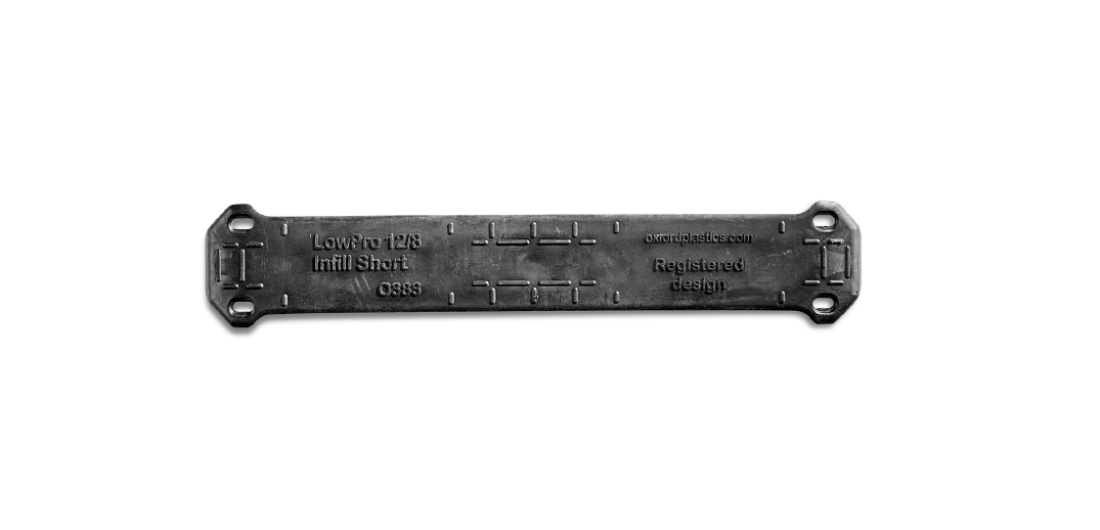

LowPro 12/8 Infill Strip Short
LowPro 12/8 Infill Strip Short

Features & Benefits

Save time

Save time

No need to bolt into place in most applications, black rubber edges grip the asphalt

Durable

Durable

LowPro edges protect the trench cover from rough handling on site

Flexible

Flexible

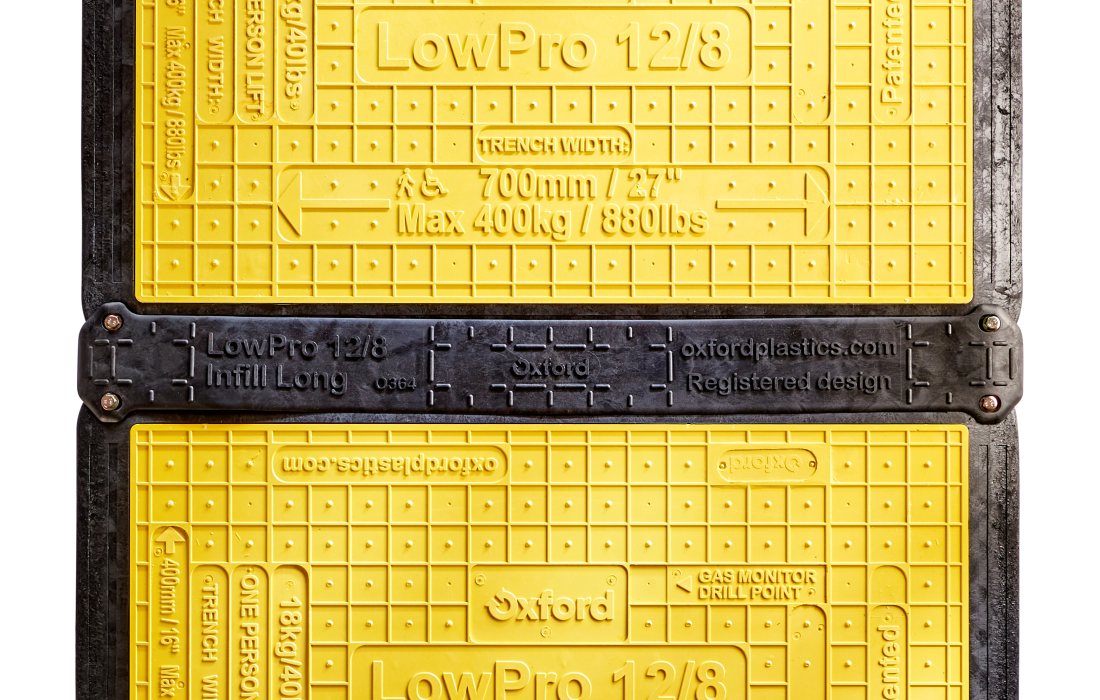

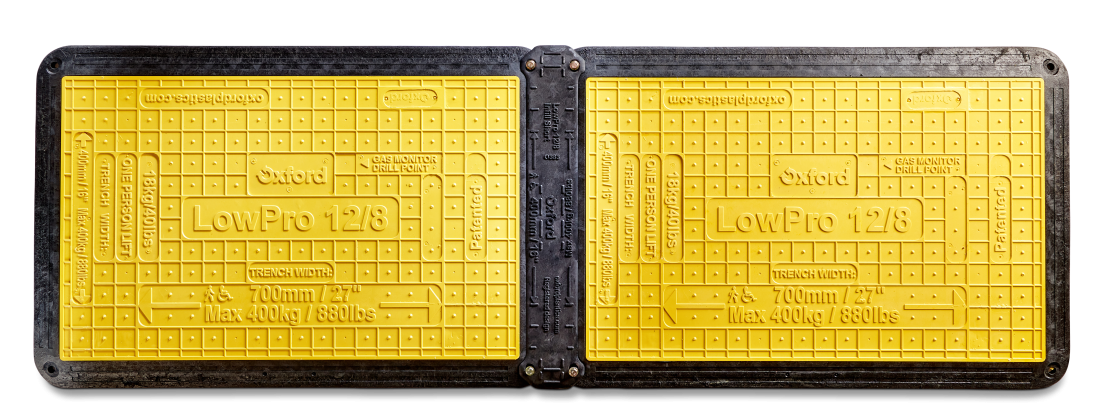

Cover any length of trench by connecting LowPros together with long or short infill strips

Easy-to-use

Easy-to-use

Instructions for use are moulded into the anti-slip surface

Anti-slip

Anti-slip

Anti-slip trench cover with grips moulded into the surface

Corporate branding

Corporate branding

Available with corporate logo moulded into the trench cover and in bespoke colours. MOQs apply

Accessibility

Accessibility

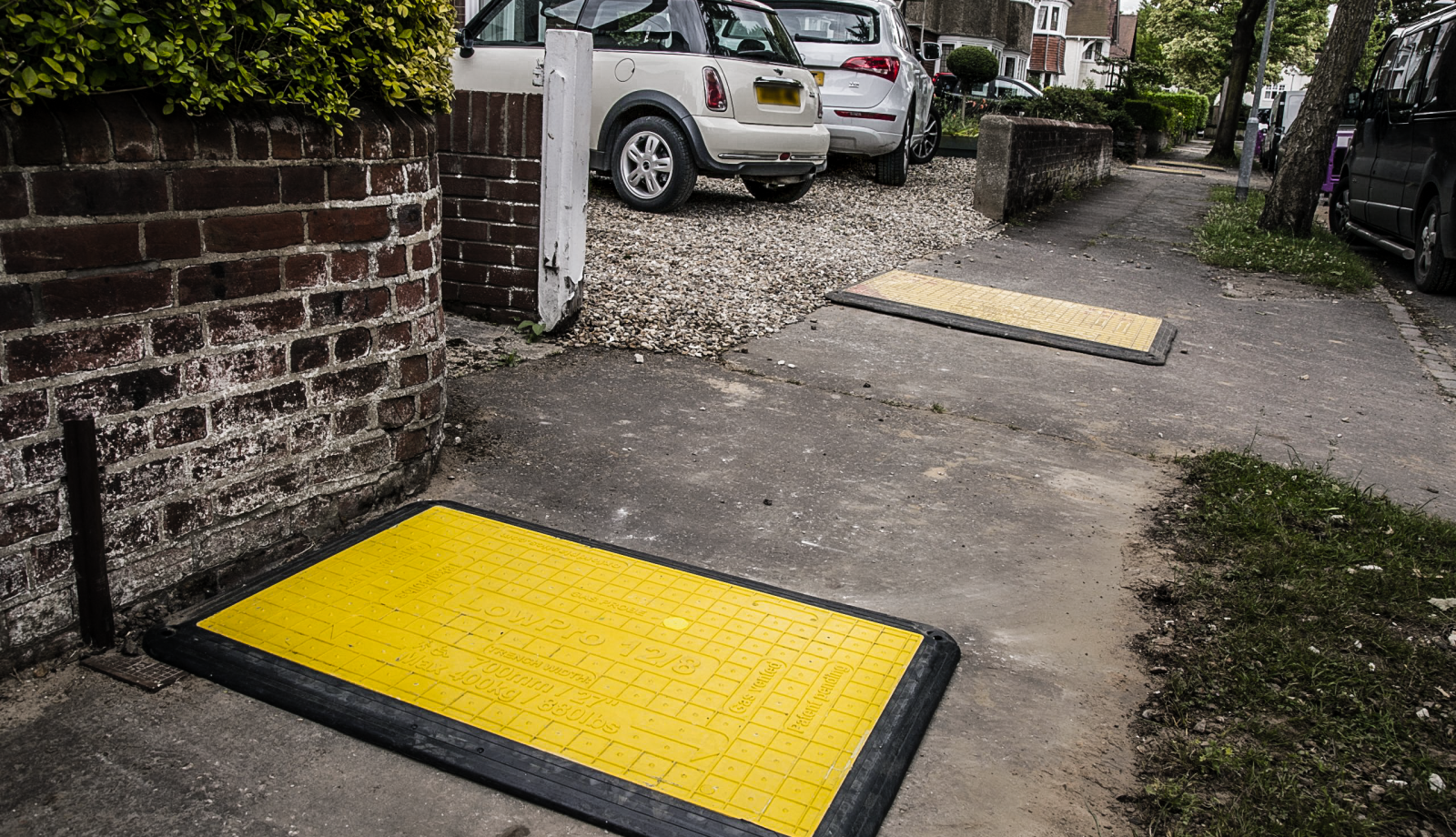

Keep footpaths open during street works by installing LowPro pedestrian trench covers.

Compact

Compact

1.2 x 0.8m trench cover fits easily in a small works vehicle

LowPro Trench Covers Guide

Everything you need to know about the range of composite LowPro trench covers from Oxford Plastics. Including how they work, installation instructions and which LowPro to use.

1:59

Easy-to-use

  • No bolts required in most applications, simply place over the excavation

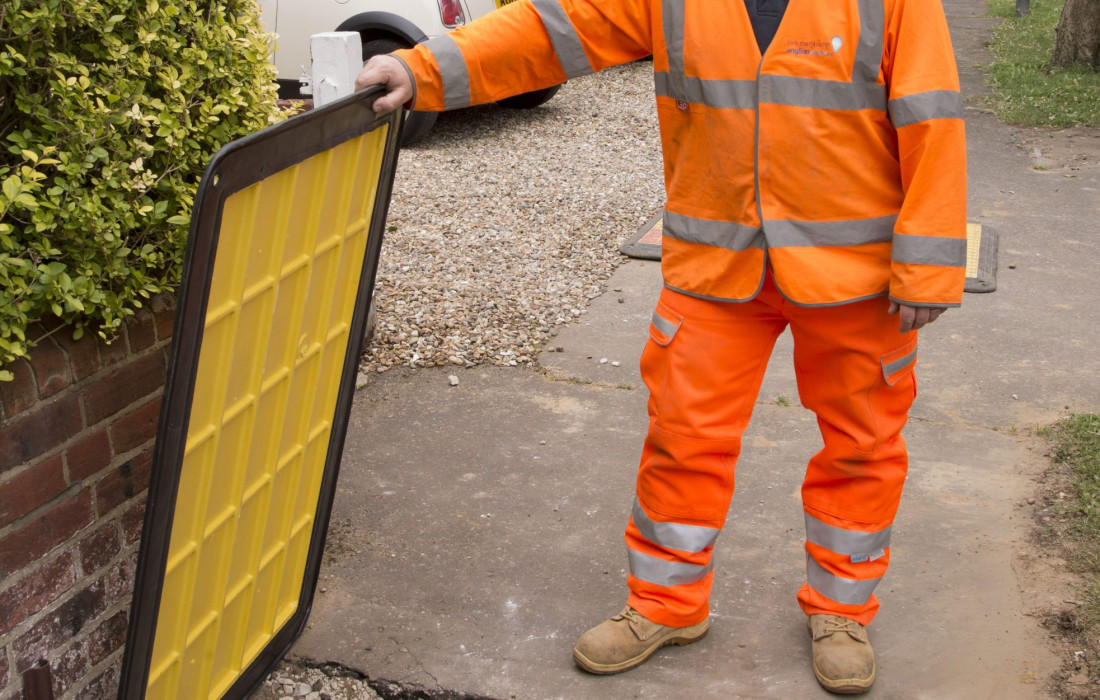

  • No heavy lifting equipment needed, install by hand
  • No cold patch or asphalt ramps needed, use the LowPro ramp attachments to create an accessible platform
  • Fits easily in the back of a works vehicle
  • Instructions for use are moulded into the anti-slip surface

Regulatory Compliance

Department for Transport

Department for Transport

Traffic Advisory Leaflet 6/14

HAUC Advice

HAUC Advice

Specification and operational requirements

British Standards 7976

British Standards 7976

Slip Testing

Get in Touch

Ready to find out more or to get in touch with our sales team? Contact us now.

Spare Parts

Reduce cost and lower your carbon footprint by maintaining equipment with spare parts.

2-way connector
2-way connector

Downloads

Download the LowPro 12/8 Trench Cover System product sheet or technical guide for more information on the product, alternatively read the comprehensive Trench Cover & Road Plate Guide for information on the full range of trench covers available from Oxford Plastics.

  •
    Product
    Category
    Type
  • LowPro® 12/8 Trench Cover System - Product Sheet
    pdf pdf
    LowPro® 12/8 Trench Cover System
    LowPro Road Plates & Trench Covers
    Product Sheet
  • LowPro® 12/8 Trench Cover System - Technical Guide
    pdf pdf
    LowPro® 12/8 Trench Cover System
    LowPro Road Plates & Trench Covers
    Technical Guide
  • LowPro® 12/8 Trench Cover System - Website Asset Pack
    zip zip
    LowPro® 12/8 Trench Cover System
    LowPro Road Plates & Trench Covers
    Website Asset Pack
  • LowPro® 12/8 Trench Cover System - LowPro Guide
    pdf pdf
    LowPro® 12/8 Trench Cover System
    LowPro Road Plates & Trench Covers
    LowPro Guide

Product Specifications

LowPro 12/8 Trench Cover

Product ref.
4356
Tool code
O362
Height (mm)
28
Width (mm)
800
Length (mm)
1200
Weight (kg)
17
Quantity per pallet
30
Full pallet height (mm)
900
Colour
Yellow & black

LowPro 12/8 Infill Long

Product ref.
5008
Tool code
O364
Height (mm)
26
Width (mm)
150
Length (mm)
1200
Weight (kg)
2
Quantity per pallet
100
Full pallet height (mm)
Colour
Yellow & black

LowPro 12/8 Infill Short

Product ref.
5318
Tool code
O383
Height (mm)
26
Width (mm)
150
Length (mm)
800
Weight (kg)
1.5
Quantity per pallet
100
Full pallet height (mm)
Colour
Yellow & black
