LowPro Road Plates & Trench Covers

LowPro® 15/10 Trench Cover System

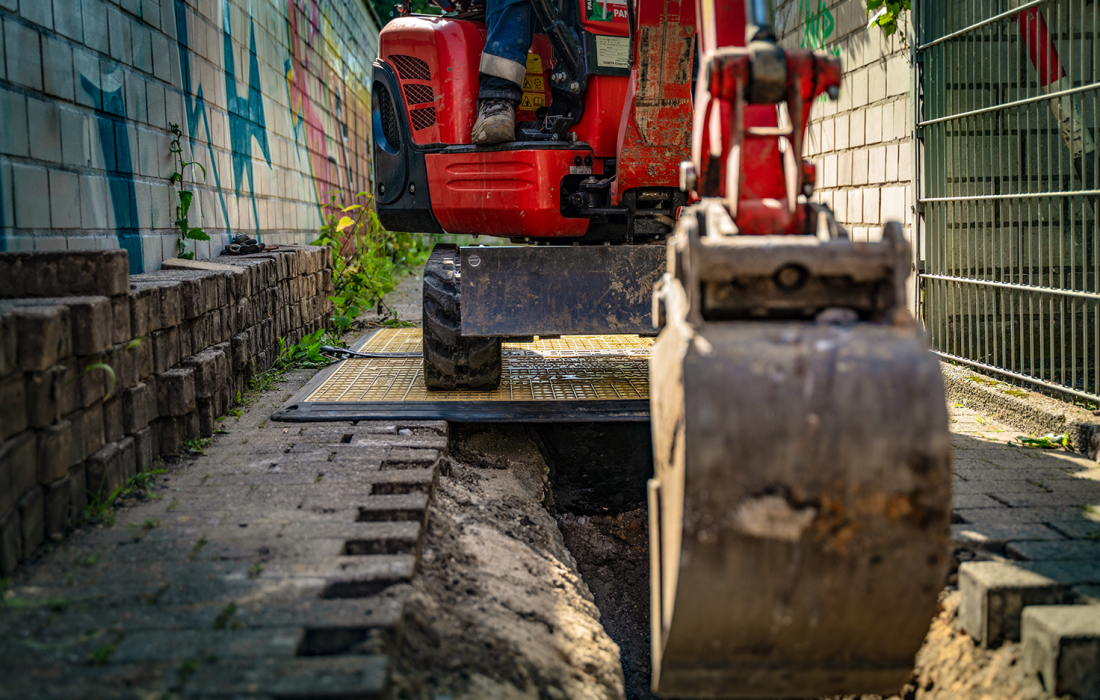

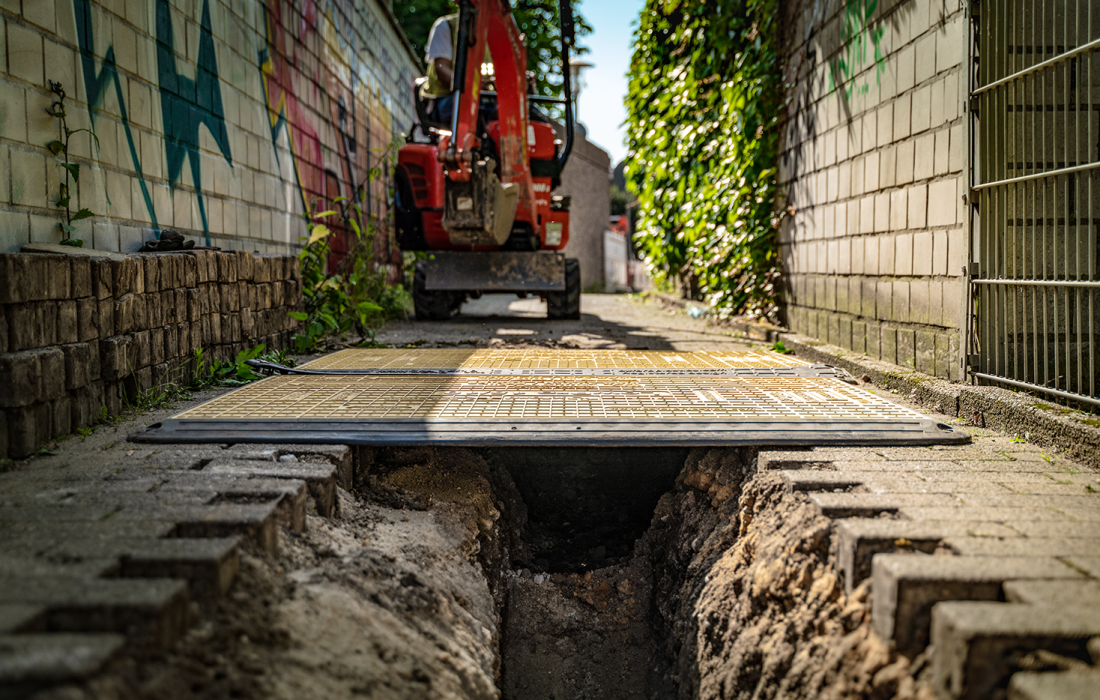

Lightweight, composite trench cover for pedestrians and 3.5t vehicles over a 900mm excavation. HAUC compliant Driveway Board. Alternative to steel plates.

LowPro® 15/10 Trench Cover System

System Components

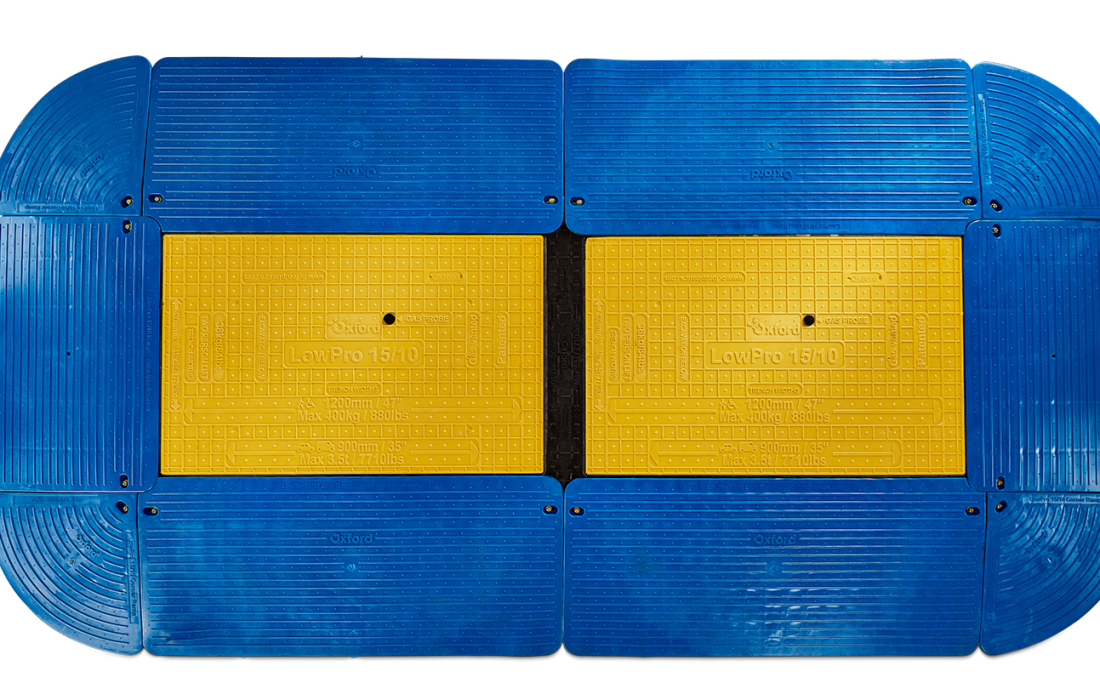

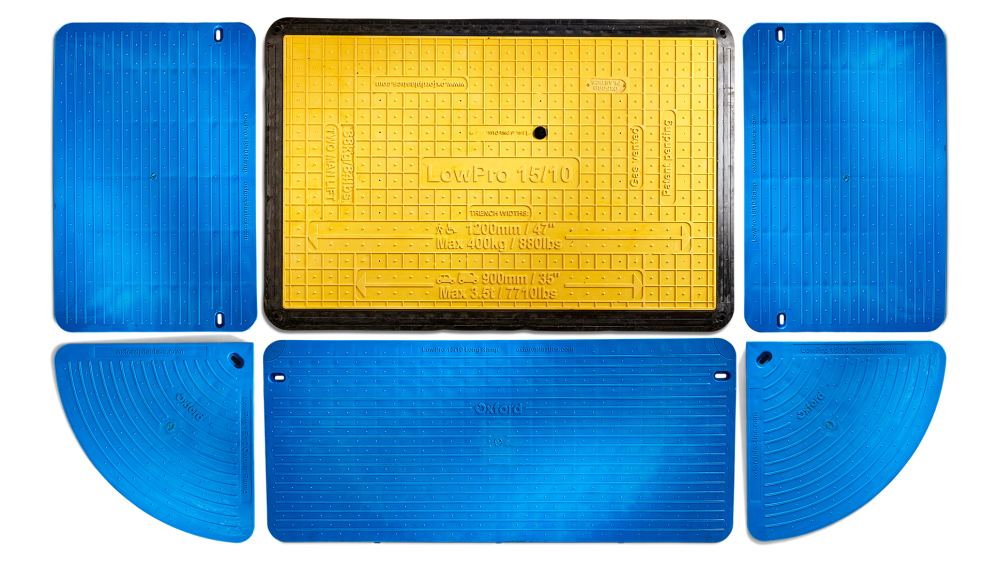

The LowPro 15/10 is a modular system of linking trench covers, comprising the trench cover, infill strips and ramps.

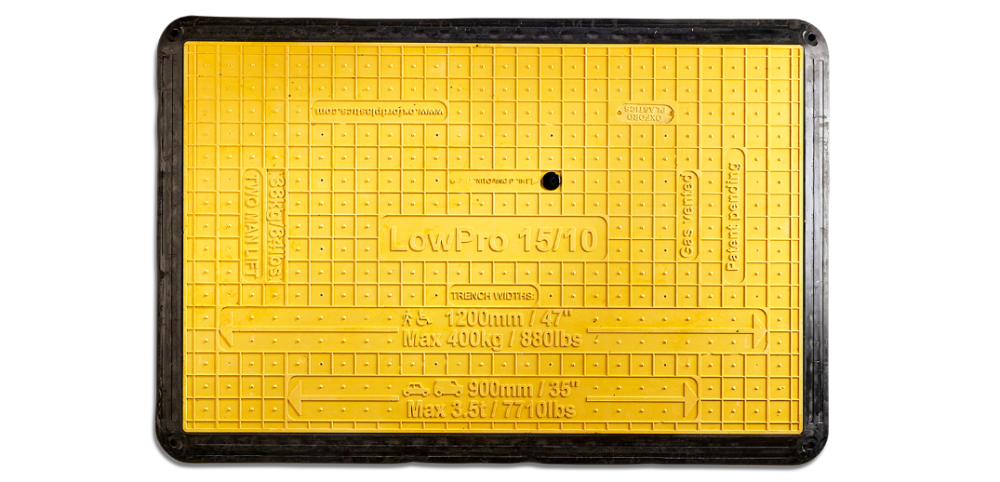

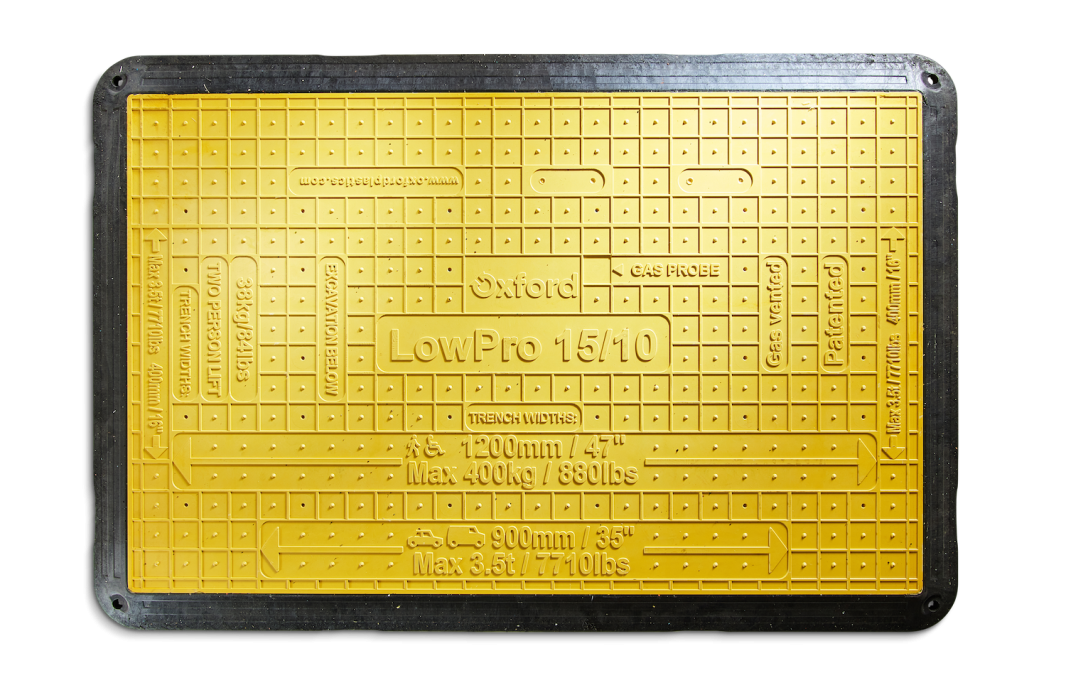

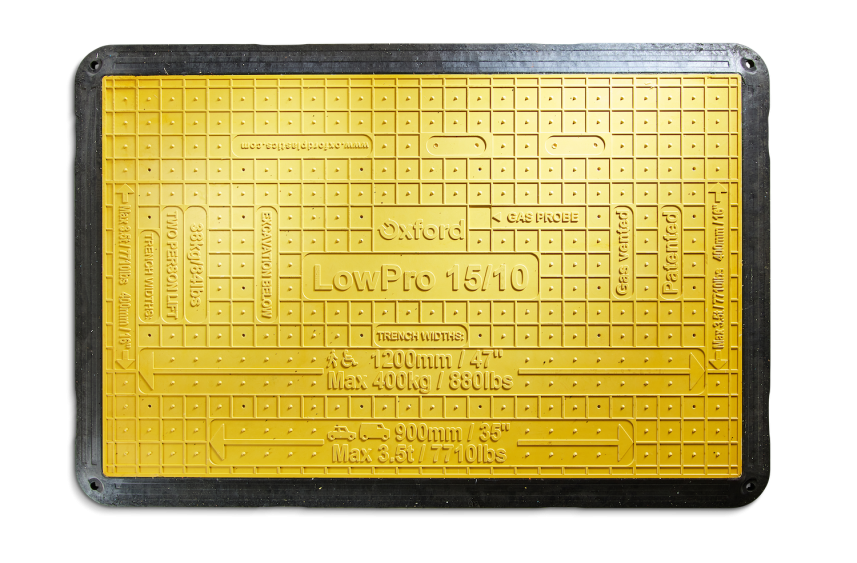

LowPro 15/10 Trench Cover
LowPro 15/10 Trench Cover

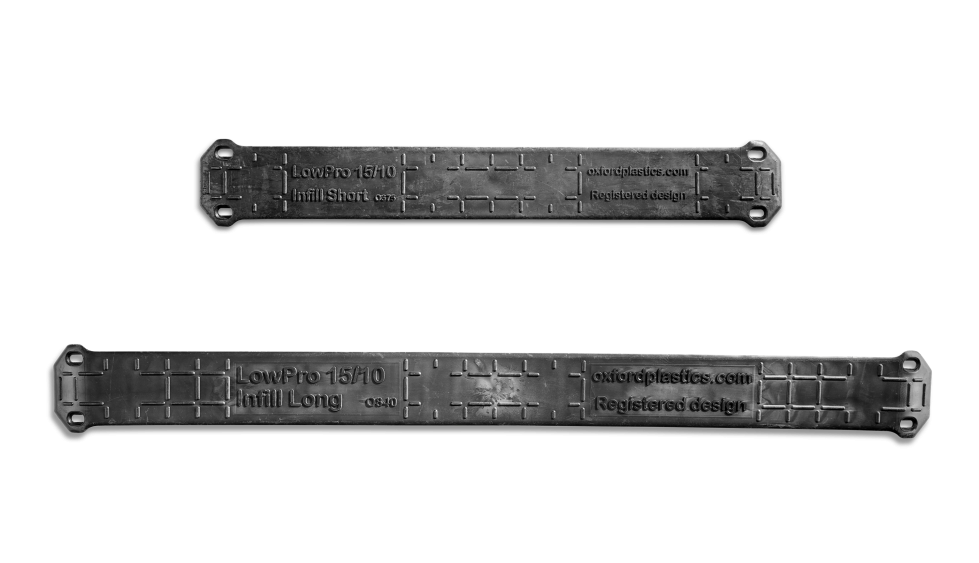

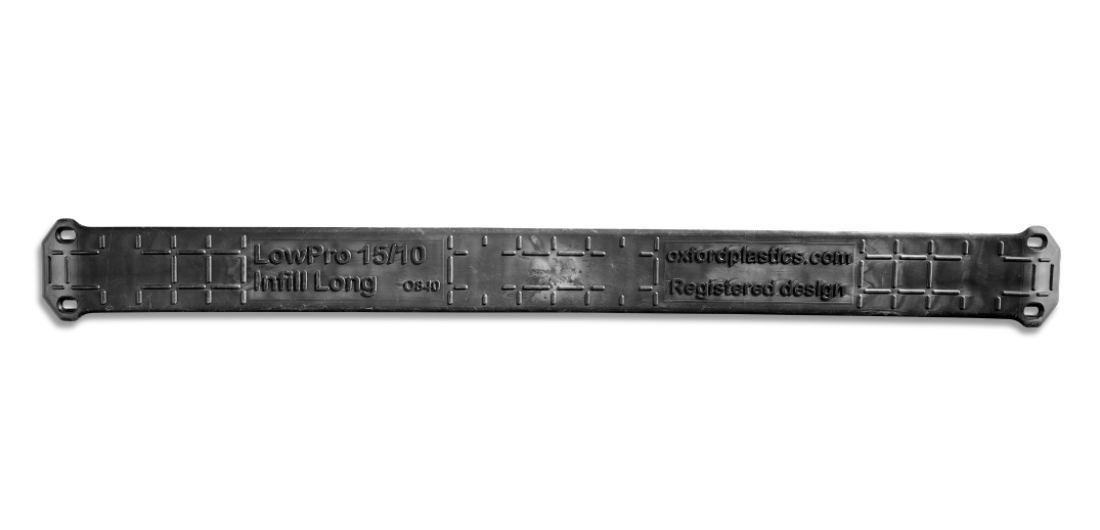

LowPro 15/10 Infill Strips
LowPro 15/10 Infill Strips

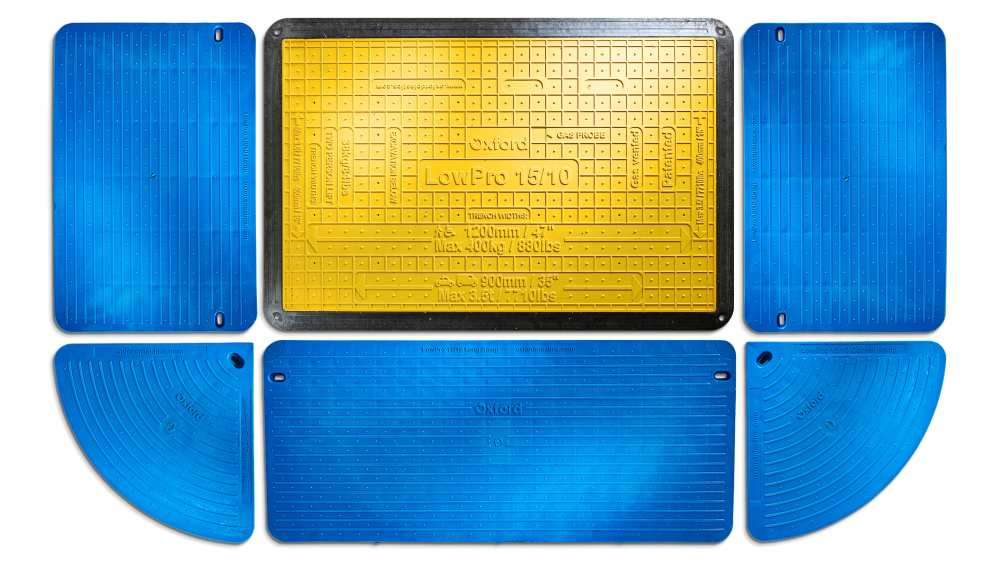

LowPro 15/10 Ramps
LowPro 15/10 Ramps

LowPro Trench Covers Guide

Everything you need to know about the range of composite LowPro trench covers from Oxford Plastics. Including how they work, installation instructions and which LowPro to use.

1:59

Features & Benefits

Save money

Save money

Save on the cost of a crane and other expensive lifting machinery with hand-liftable trench covers

Save time

Save time

No need to bolt into place in most applications, black rubber edges grip the asphalt

Durable

Durable

LowPro edges protect the trench cover from rough handling on site

Flexible

Flexible

Cover any length of trench by connecting LowPros together with long or short infill strips & ramps

DDA compliant

DDA compliant

Ramp attachments in long, short and corner sizes create a smooth 1:12 gradient for vehicles and pedestrians

Easy-to-use

Easy-to-use

Instructions for use are moulded into the anti-slip surface

Anti-Slip

Anti-Slip

Hard-wearing anti-slip surface moulded into the product

Corporate branding

Corporate branding

Available with corporate logo moulded into the trench cover and in bespoke colours. MOQs apply

Easy-to-use

  • No bolts required in most applications, simply place over the excavation

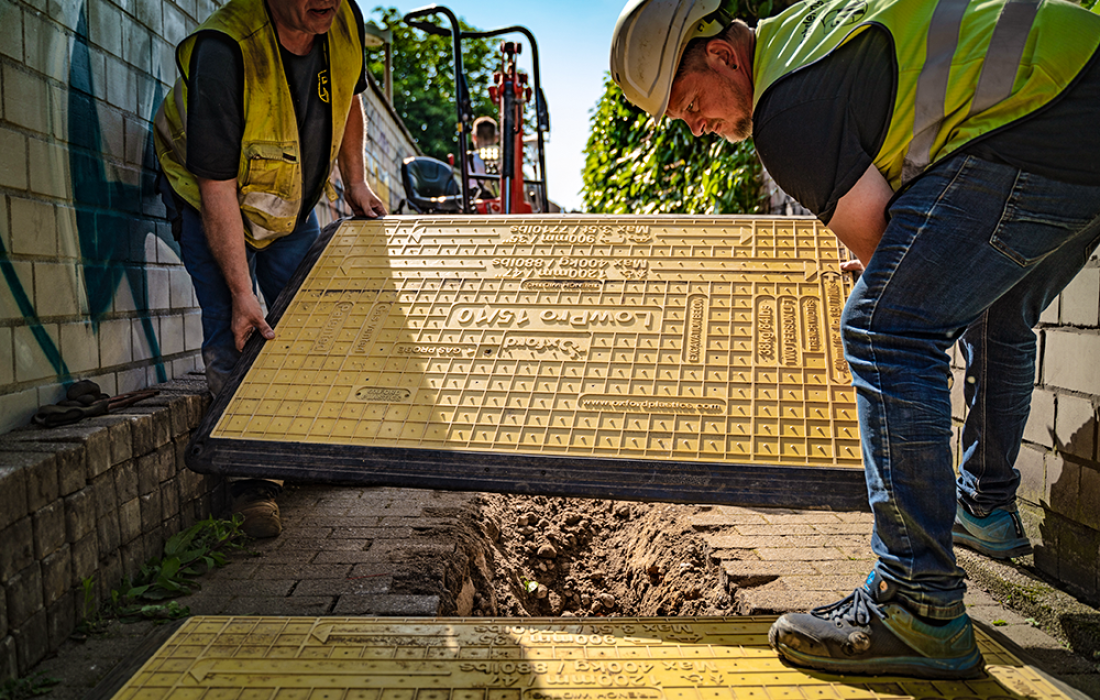

  • No heavy lifting equipment needed, install with just 2 people
  • No cold patch or asphalt ramps needed, use the LowPro ramp attachments to create an accessible platform
  • Fits easily in the back of a works vehicle
  • Instructions for use are moulded into the anti-slip surface

Regulatory Compliance

Department for Transport

Department for Transport

Using road plates at road works

HAUC

HAUC

HAUC Advice Note No. 2018/01

British Standard 7976

British Standard 7976

Slip Testing

Accessibility

Infill strips

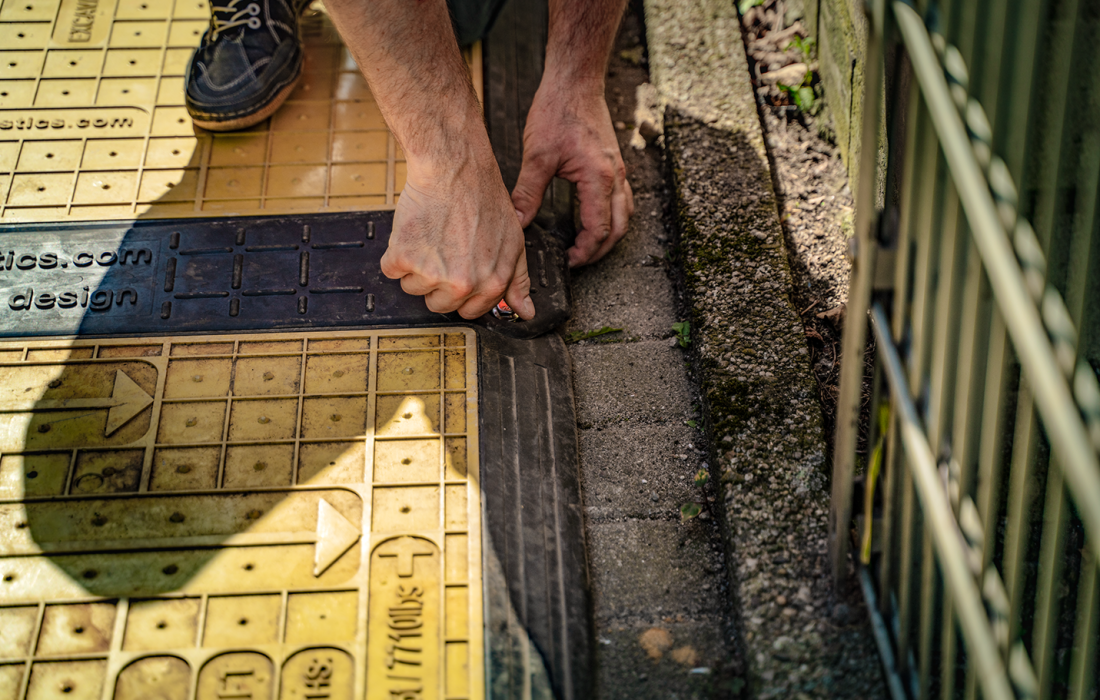

Connect the boards together and prevent drifting once installed

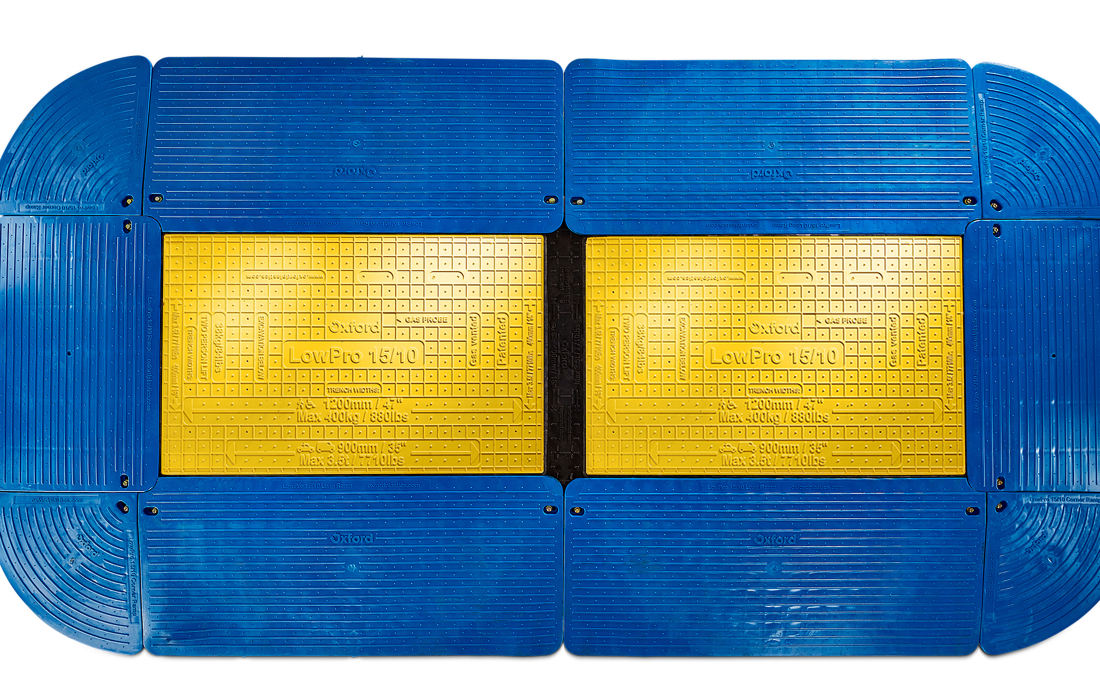

1:12 gradient ramps

Create an accessible gradient for cars, bicycles, wheelchairs and buggies

High foot traffic

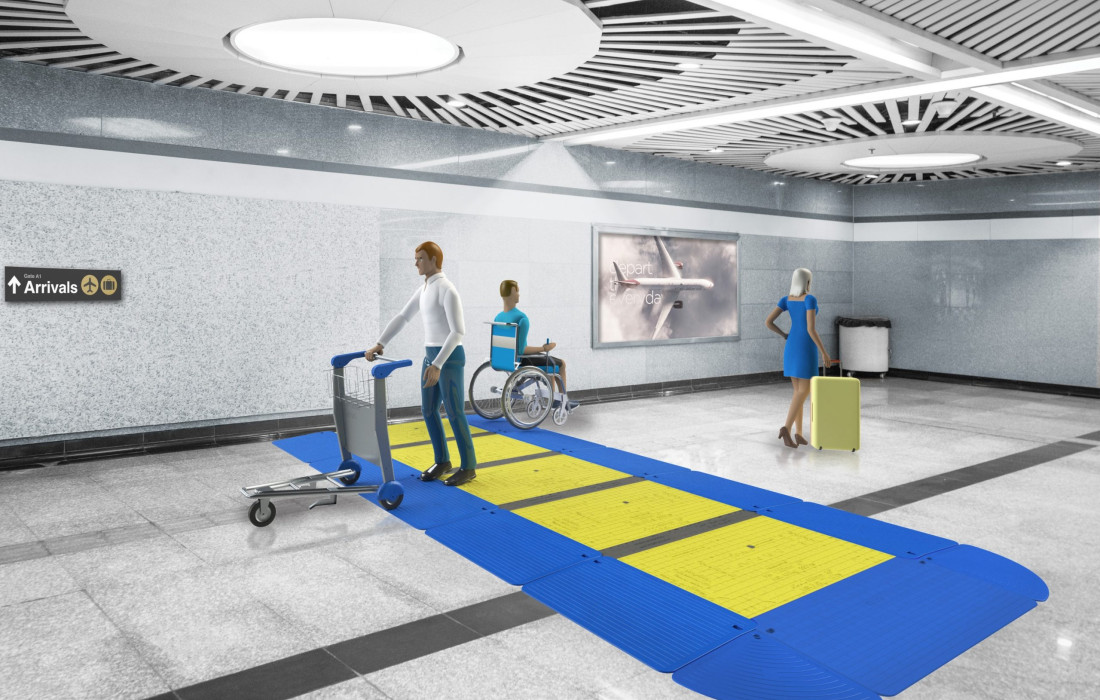

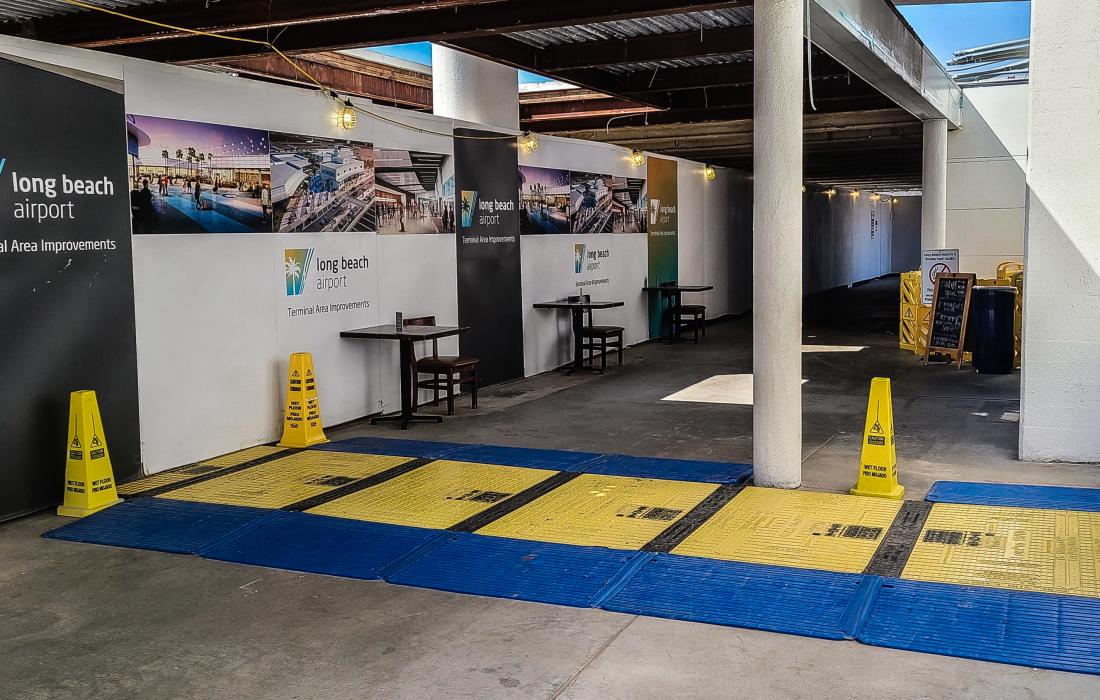

Use the full kit of attachments in public-facing spaces such as airports and travel centres, pavements, street works and in facilities management

Anti-slip

LowPro edges grip the ground underneath for added stability and the surface is anti-slip in all weather conditions

Get in Touch

Ready to find out more or to get in touch with our sales team? Contact us now.

Downloads

Find out more with our comprehensive guides on the LowPro 15/10 trench cover, the complete Trench Cover & Road Plates Guide or visit or Road Plates & Trench Covers page for more information.

  •
    Product
    Category
    Type
  • LowPro® 15/10 Trench Cover System - Product Sheet
    pdf pdf
    LowPro® 15/10 Trench Cover System
    LowPro Road Plates & Trench Covers
    Product Sheet
  • LowPro® 15/10 Trench Cover System - Technical Guide
    pdf pdf
    LowPro® 15/10 Trench Cover System
    LowPro Road Plates & Trench Covers
    Technical Guide
  • LowPro® 15/10 Trench Cover System - Website Asset Pack
    zip zip
    LowPro® 15/10 Trench Cover System
    LowPro Road Plates & Trench Covers
    Website Asset Pack
  • LowPro® 15/10 Trench Cover System - LowPro Guide
    pdf pdf
    LowPro® 15/10 Trench Cover System
    LowPro Road Plates & Trench Covers
    LowPro Guide

Spare Parts

Reduce cost and lower your carbon footprint by maintaining equipment with spare parts.

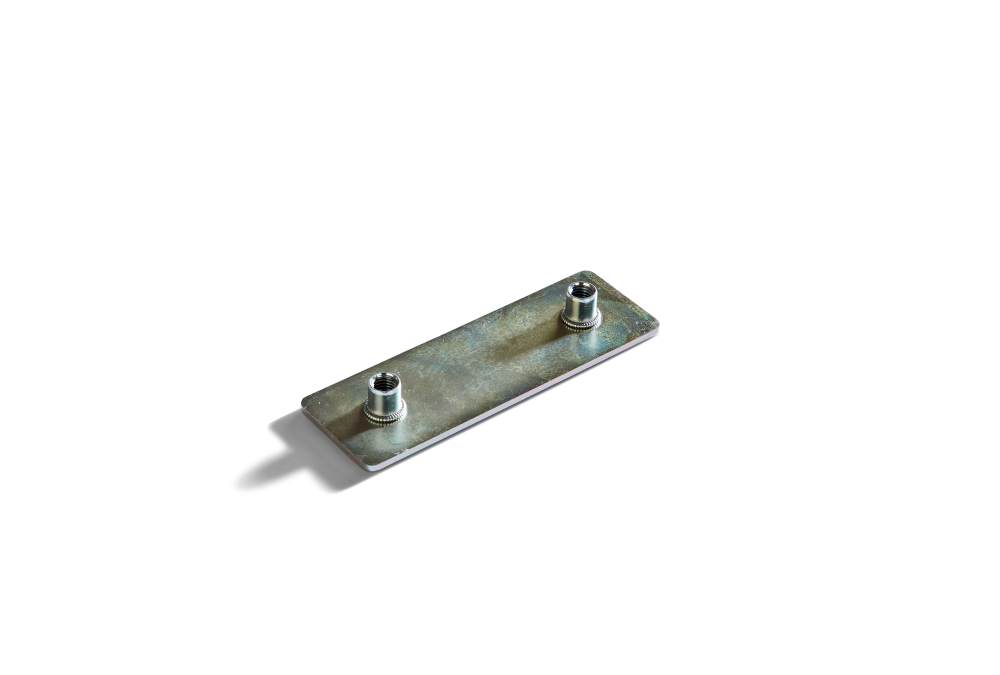

2-way connector
2-way connector

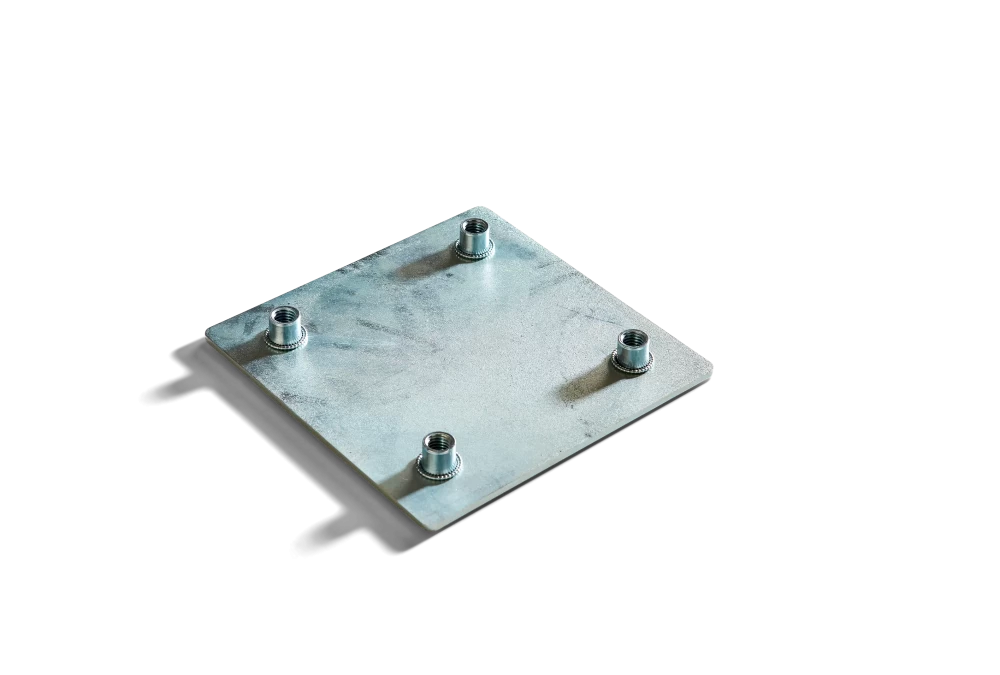

4-way connector
4-way connector

Product Specifications

LowPro 15/10 Driveway Board

Product ref.
4132
Tool code
O815
Height (mm)
37
Width (mm)
1000
Length (mm
1500
Weight (kg)
38
Quantity per pallet
20
Full pallet height (mm)
850
Colour
Black & yellow

LowPro 15/10 Infill Long Side

Product ref.
4998
Tool code
O840
Height (mm)
35
Width (mm)
150
Length (mm)
1500
Weight (kg)
2.3
Quantity per pallet
100
Full pallet height (mm)
Colour
Black & yellow

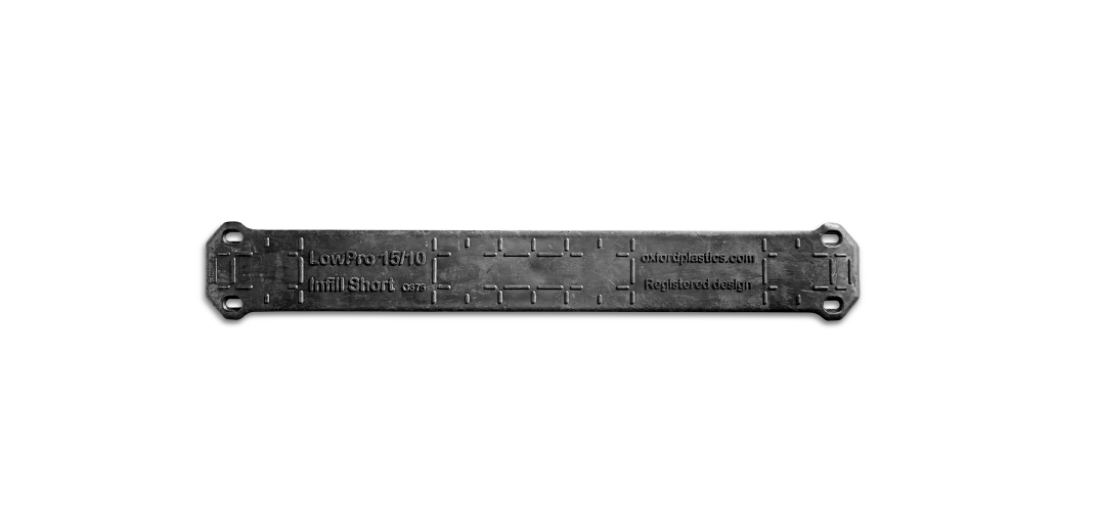

LowPro 15/10 Infill Short Side

Product ref.
5006
Tool code
O375
Height (mm)
35
Width (mm)
150
Length (mm)
1000
Weight (kg)
2
Quantity per pallet
100
Full pallet height (mm)
Colour
Black & yellow

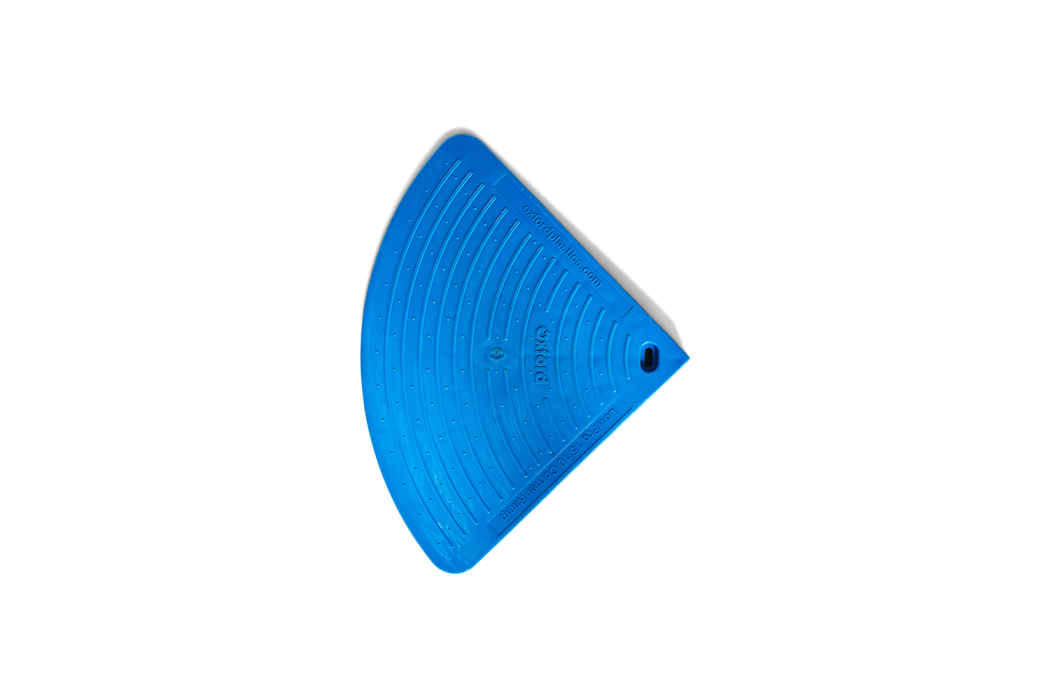

LowPro 15/10 Ramp Corner

Product ref.
5466
Tool code
O775
Height (mm)
42
Width (mm)
577
Length (mm)
577
Weight (kg)
2.45
Quantity per pallet
100
Full pallet height (mm)
Colour
Blue

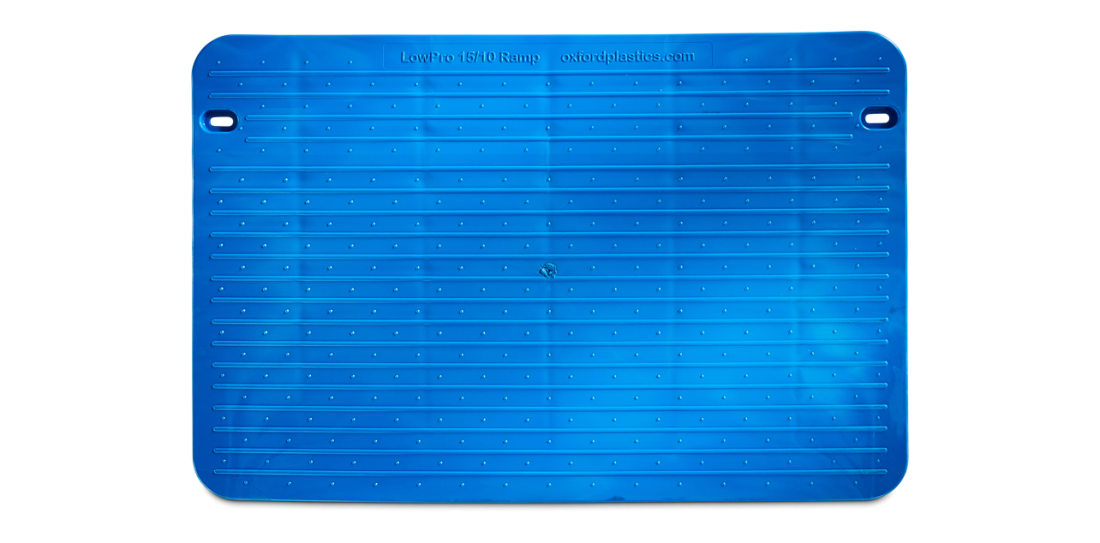

LowPro 15/10 Ramp Short

Product ref.
5309
Tool code
O798
Height (mm)
42
Width (mm)
645
Length (mm)
990
Weight (kg)
8.75
Quantity per pallet
50
Full pallet height (mm)
Colour
Blue

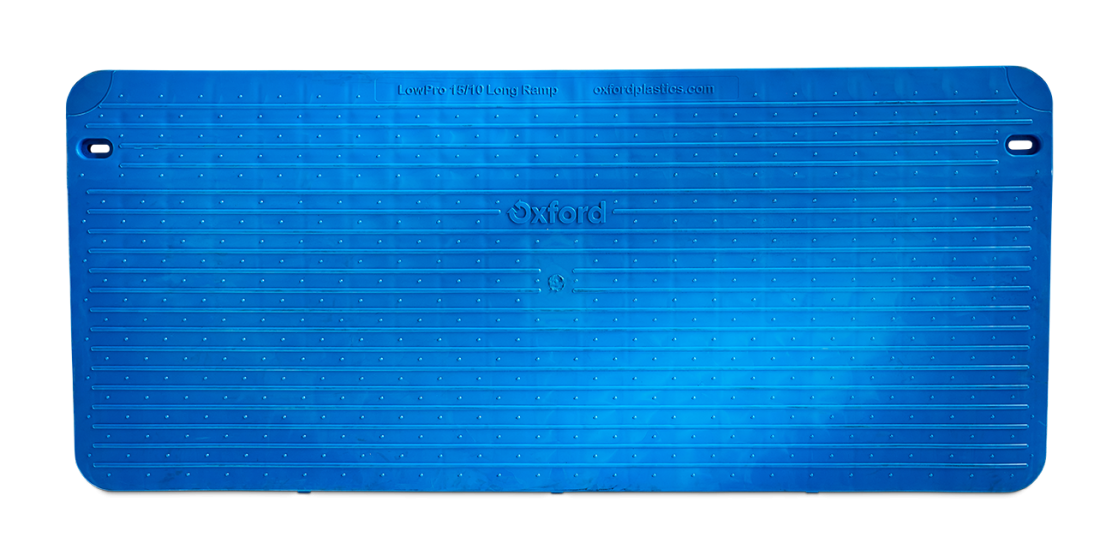

LowPro 15/10 Ramp Long

Product ref.
5465
Tool code
O774
Height (mm)
42
Width (mm)
645
Length (mm)
1490
Weight (kg)
9
Quantity per pallet
50
Full pallet height (mm)
Colour
Blue
