LowPro Road Plates & Trench Covers

LowPro 23/05 Road Plate System

Composite, lightweight alternative to steel road plates, suitable for 97,000lbs vehicles over a 48" wide trench or excavation, while being HS20‐44, AASHTO H25, and HS25 Loading Compliant

LowPro 23/05 Road Plate System

System Components

The LowPro 23/05 is a modular system of linking inner and end pieces, installed by hand using the EasiLift handles and transported in the stillage.

LowPro 23/05 End Piece
LowPro 23/05 End Piece
LowPro 23/05 Inner Piece
LowPro 23/05 Inner Piece
EasiLift Handles
EasiLift Handles

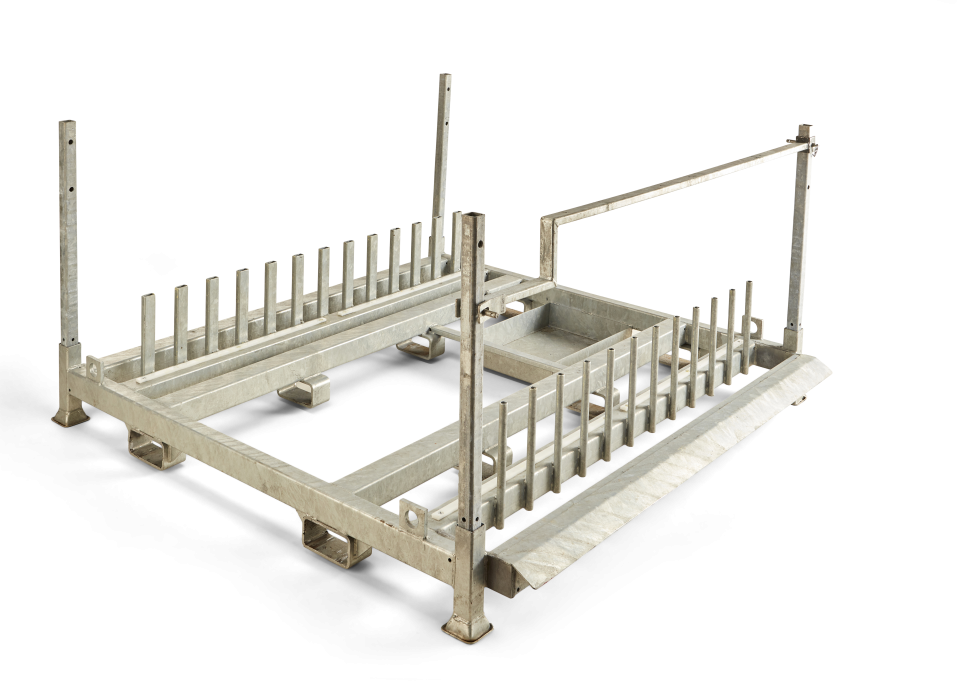

Stillage
Stillage

LowPro Road Plates Guide

Everything you need to know about the range of composite LowPro road plates from Oxford Plastics. Including how they work, installation instructions, and which LowPro to use.

2:41

Features & Benefits

Save Time & Money

Save Time & Money

Save on the cost of a crane and other expensive lifting machinery. Install by hand in minutes with the lifting handles

NYC DOT Approved

NYC DOT Approved

Composite Road Plates like the LowPro 23/05 are New York CIty DOT approved

Reduce Carbon Emissions

Reduce Carbon Emissions

Up to 79% reduction in carbon emissions compared to using traditional steel road plates

Safety First

Safety First

143lb units are light, reducing the risk of injury to hands and fingers

Super Strong

Super Strong

Supports 97,000lbs vehicles over an excavation

Flexible

Flexible

Linking units connect to cover any length of trench

Repairable

Repairable

Spare parts can extend the life of the road plate

Secured in Place

Secured in Place

Bolt down every second piece when left unattended. Patented drop pins also drop into the trench to stop the plates from sliding

Regulatory Compliance

HS20-44

HS20-44

AASHTO H25

AASHTO H25

HS25 Loading Compliant

HS25 Loading Compliant

Save Time & Money

  • Securely cover a 20-foot road width of trench in 10 minutes
  • Save hundreds of dollars on the rental of heavy-lifting equipment on site
  • Small and light enough to fit in the back of a truck
  • Lift and install the road plates with the EasiLift handles

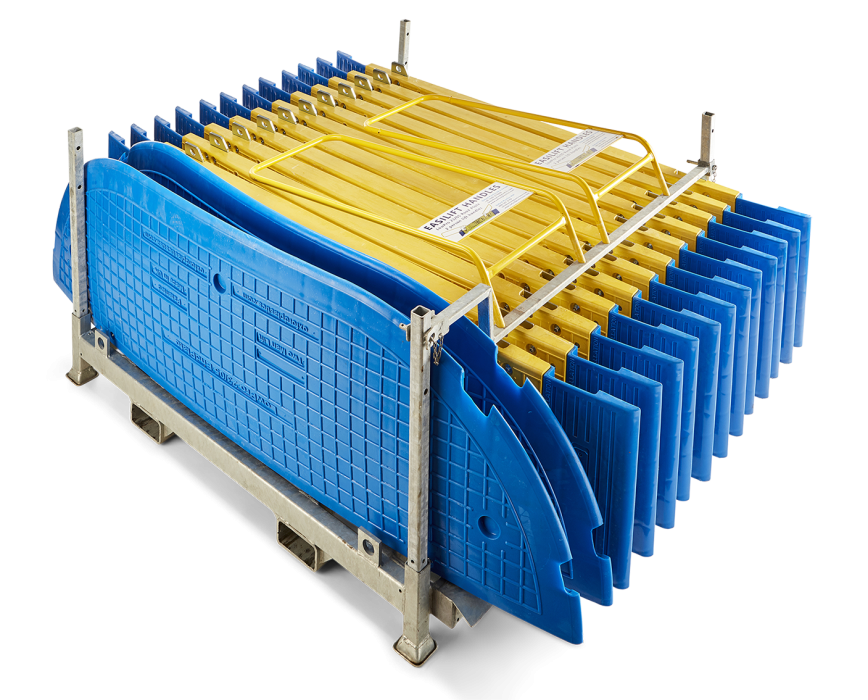

  • Fit 20 feet of road plate in the stillage, with locking bar and forklift pockets

Get in Touch

Ready to find out more or to get in touch with our sales team? Contact us now.

The Alternative to Steel Road Plates

Strong Like Steel

The LowPro 23/05 plastic road plate is a direct alternative to 48" x 96", 1" thick steel road plates

Noise Dampening

Soft, rubber-like edges create a smooth surface for pedestrians and vehicles

Easy to Use

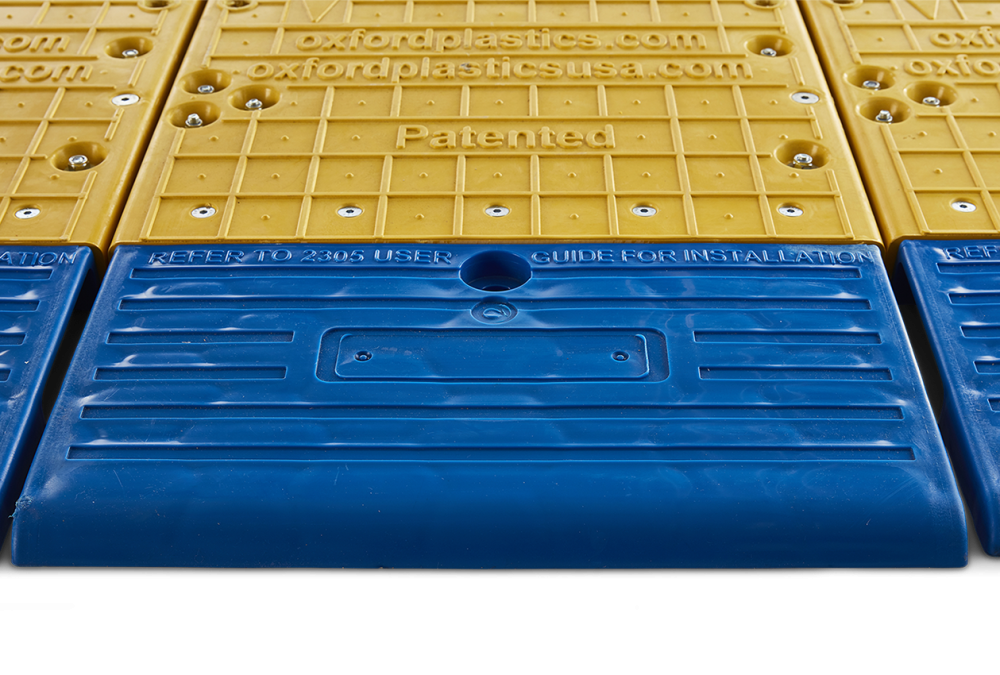

Instructions for use are molded into the anti-slip surface

Install by Hand

Small enough to fit in a van or truck, the LowPro 23/05 is installed quickly and easily by hand

Reduce Carbon Footprint

Save up to 89% of CO2e

Using the LowPro 23/05 instead of steel plates reduces up to 79% of CO2e emissions over the lifetime of the equipment

Eliminate Carbon-Heavy Machinery

Because machinery isn’t needed for installation, users can gain huge carbon emission savings from transport & installation emissions

Right to Repair

Designed with the right to repair, spare parts are available to extend the life of your equipment

Spare Parts

Reduce cost and lower your carbon footprint by maintaining equipment with spare parts

LowPro 23/05 Road Plate Blue LowPro Edge
LowPro 23/05 Road Plate Blue LowPro Edge
LowPro 23/05 Road Plate Male U Bolt Connector
LowPro 23/05 Road Plate Male U Bolt Connector
LowPro 23/05 Road Plate Female Locking Plate
LowPro 23/05 Road Plate Female Locking Plate

Downloads

The LowPro 23/05 is a heavy-duty plastic road plate, suitable to securely and safely cover trenches on highways and sidewalks. Find out more about the LowPro 23/05 with the Product Sheet or read the Trench Cover & Road Plates Guide to find out which trench cover is right for your work.

  •
    Product
    Category
    Type
  • LowPro 23/05 Road Plate System - Product Sheet
    pdf pdf
    LowPro 23/05 Road Plate System
    LowPro Road Plates & Trench Covers
    Product Sheet
  • LowPro 23/05 Road Plate System - Technical Guide
    pdf pdf
    LowPro 23/05 Road Plate System
    LowPro Road Plates & Trench Covers
    Technical Guide
  • LowPro 23/05 Road Plate System - Website Asset Pack
    zip zip
    LowPro 23/05 Road Plate System
    LowPro Road Plates & Trench Covers
    Website Asset Pack
  • LowPro 23/05 Road Plate System - LowPro Guide
    pdf pdf
    LowPro 23/05 Road Plate System
    LowPro Road Plates & Trench Covers
    LowPro Guide

Product Specifications

LowPro 23/05 Road Plate Inner

Product ref.
4909
Tool code
O839
Height
3"
Width
20"
Length
91"
Weight
143lb
Quantity per pallet
16
Full pallet height
34"
Color
Yellow & Blue

LowPro 23/05 Road Plate End

Product ref.
4969
Tool code
O726
Height
3"
Width
28"
Length
91"
Weight
60lb
Quantity per pallet
16
Full pallet height
34"
Color
Blue

EasiLift Handles (Pair)

Product ref.
4725
Tool code
O730
Height
8"
Width
18"
Length
36"
Weight
7lb
Quantity per pallet
20
Full pallet height
8"
Color
Yellow

LowPro 23/05 Stillage - Empty

Product ref.
4902
Tool code
O731
Height
36"
Width
64"
Length
70"
Weight
419lb
Quantity per pallet
1
Full pallet height
36"
Color
Silver

LowPro 23/05 Stillage - Filled - 12 Inners 2 Ends

Product ref.
5895
Tool code
O732
Height
36"
Width
90"
Length
68"
Weight
2270lb
Quantity per pallet
1
Color
Sliver, Blue, Yellow
